Cost-effective and we choose high-quality tungsten steel with high hardness and high wear resistance Precision machine building, fine grinding. Precision processing, less burrs in product processing-high smoothness Strict quality control, high precision and sharper finished products1. Sharp edge angles greatly improve cutting efficiency 2. Straight groove design, smooth chip evacuation without sticking to the knife 3. Reasonably avoid the air and extend the tool life 4. Strengthen the rigidity of cutting edge, and the arc edge belt is conductive to the sharper side edge and effectively remove burr. 5. The large capacity chip removal groove cuts the force, and the cutting is more fluent, achieving high efficiency machining, and the workpiece is more precise and more awesome.

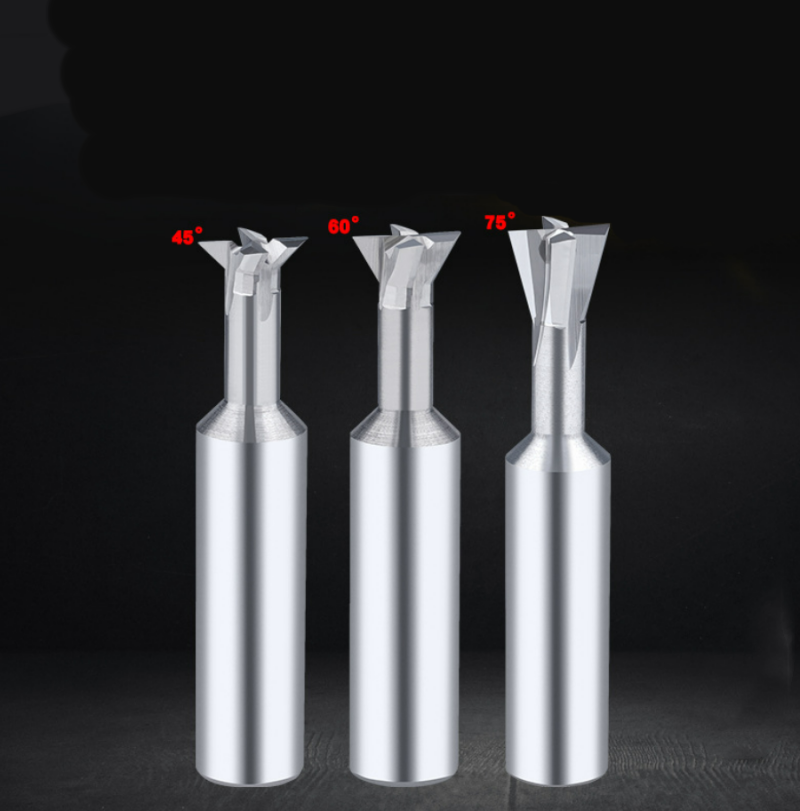

Type	Tungsten Dovetail Milling Cutter	Material	Tungsten Steel
Workpiece Material	Stainless steel, aluminum, die steel, cast iron, aluminum alloy, alloy steel, titanium alloy, etc.	Applicable machine tool	CNC machining center, CNC machine tool, engraving machine, engraving machine, high-speed machine
Transport Package	Box	Flute	3/4
Coating	No	Hardness	<=55

Flute Diameter(mm)	D2(mm)	L2(mm)	Flute Height(mm)	Shank Diameter(mm)	Total Length(mm)	Flutes
3	1.5	5	0.7	3	50	3
4	2	6	1	4	50	3
5	2.5	8	1.2	5	50	3
6	3	8	1.5	6	50	3
7	3.5	10	1.7	7	50	4
8	4	10	2	8	50	4
9	4.5	15	2.2	9	60	4
10	5	15	2.5	10	60	4
11	5.5	15	2.7	11	60	4
12	6	15	3	12	60	4
16	8	20	4	16	65	4
20	10	25	5	20	75	4
3	1.5	5	1.4	3	50	3
4	2	6	1.7	4	50	3
5	2.5	8	2.1	5	50	3
6	3	8	2.6	6	50	3
7	3.5	10	3	7	60	4
8	4	10	3.4	8	60	4
9	4.5	15	3.8	9	60	4
10	5	15	4.3	10	60	4
11	5.5	15	4.7	11	60	4
12	6	15	5.2	12	60	4
16	8	20	6.9	16	65	4
20	10	25	8.6	20	70	4
3	1.5	5	2.7	3	50	3
4	2	6	3.7	4	50	3
5	2.5	8	4.6	5	50	3
6	3	8	5.5	6	50	3
7	3.5	10	6.5	7	60	4
8	4	10	7.4	8	60	4
9	4.5	15	8.3	9	60	4
10	5	15	9.3	10	60	4
11	5.5	15	10.2	11	60	4
12	6	15	11.1	12	60	4
16	8	20	14.9	16	65	4
20	10	25	18.6	20	75	4

Widely used in many fields Aviation Manufacturing Machine Production Car manufacturer Mold making Electrical Manufacturing Lathe processing
