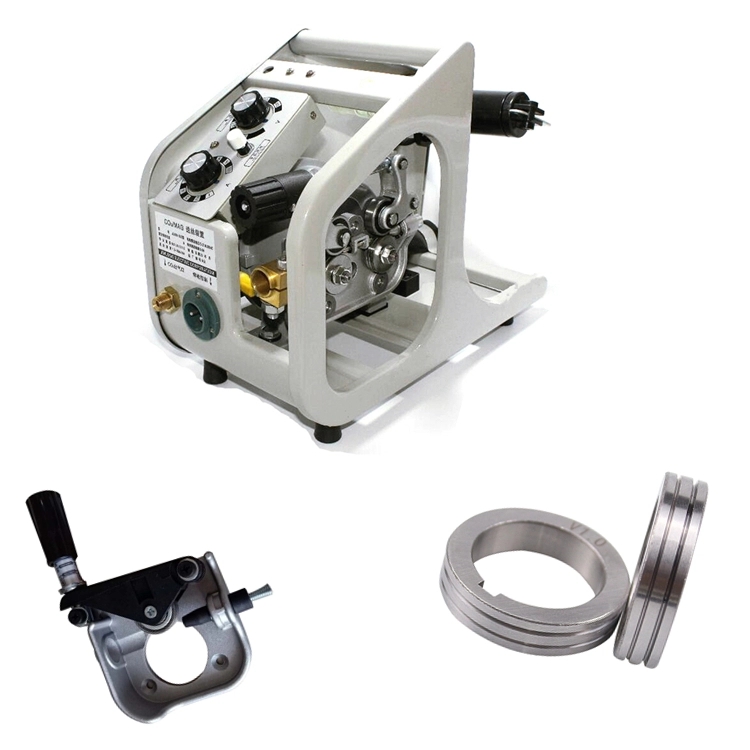

Panasonic Type MIG Welding Wire Feeder

Place of Origin:Hebei, China Brand Name:XINFA Product name:wire feeder Application:MIG MMA ARC Welding Input voltage::Three Phase AC 380VA 15% Package:Customers' Requirement Wire Feeding Speed::3-15M/min Name:XINFA mig motor soldering 24v automatic welding wire feeder style:MIG Torch Weight:45-65kg Color:White red Customed OEM:Acceptable
send email to us

Products Details

1. Advanced IGBT inverter technology, cost saving and energy improving. 2. PWM control, high quality and stable performance. 3. Accurate current control, stable arc transition, and excellent welding characteristics. 4. Adjustable wire feeding speed, tip ball removing and electronic induction regulating. 5. Automatic over-voltage and over-current protection. 6.Built-in wire feeder; easy to carry around.
Model                                          CMBJ-M35
Wire Feeding Speed  1.4~15M/min
Input Voltage AC380V,3Phase
Rated Input Current 22A
Max.Effective Input Current 20A
No-load Voltage 56V
Welding Current 350A
Output Voltage&Current 60A/17V~350A/31.5V
Diameter of Welding Wire 0.8/1.0/1.2
Wire Dia.  0.7~1.8mm

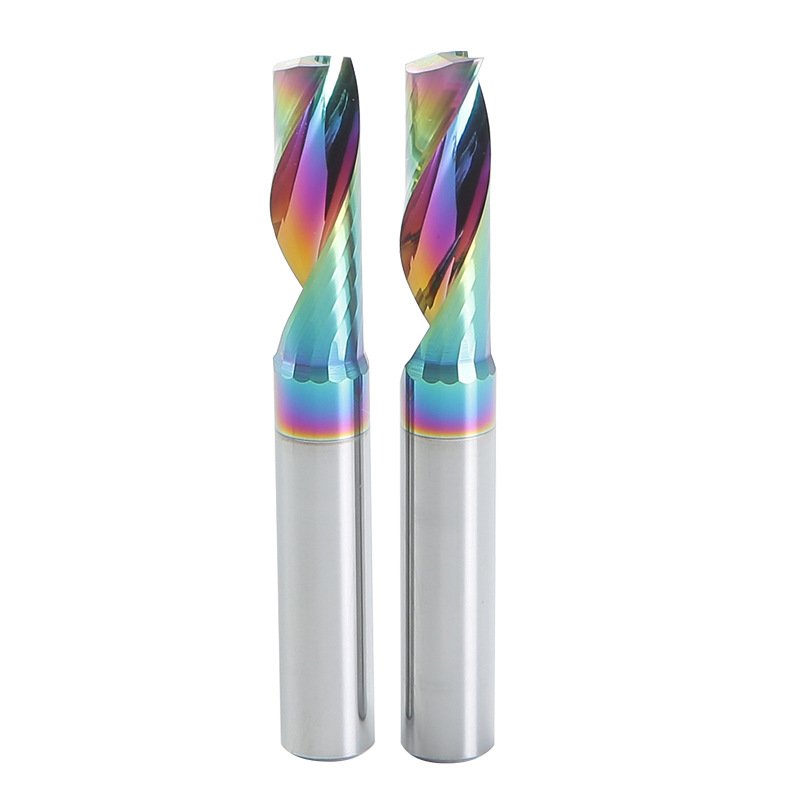

Previous:DLC Coating Single Flute End Mill For Aluminum
