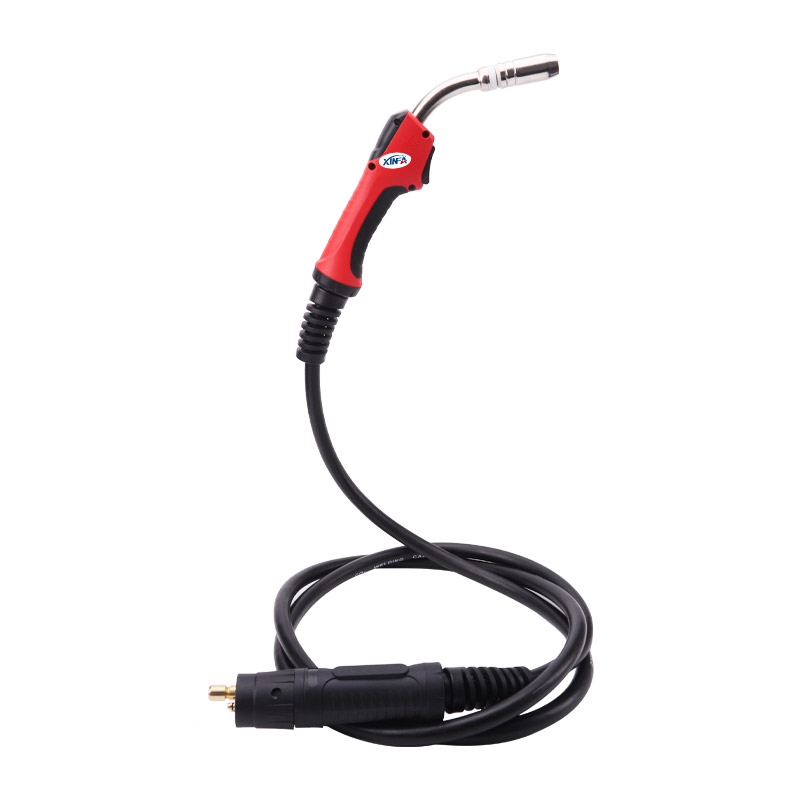

Binzel type MB 25AK MIG Gas Cooling Welding Torch | |
Duty Cycle 60% | 230Amp CO2 , 200 Amp Mixed Gases |
Cooling | Air Cooled |
Wire Diameter | 0.8-1.2mm |
Length fo choose | 3m / 4m / 5m |
Technical Data | |
Description | Reference N0. |
25AK Torch 3m | 004.0312 |
25AK Torch 4m | 004.0313 |
25AK Torch 5m | 004.0314 |
Tapered Nozzle 11mm | 145.0124 |
Conical Nozzle 15mm | 145.0076 |
Cylindrical Nozzle 18mm | 145.0042 |
Contact Tip,ECu,M6 28 0.8 | 140.0051 |
Contact Tip,ECu,M6 28 0.9 | 140.0169 |
Contact Tip,ECu,M6 28 1.0 | 140.0242 |
Contact Tip,ECu,M6 28 1.2 | 140.0379 |
Contact Tip,CuCrZr M6 28 0.8 | 140.0054 |
Contact Tip,CuCrZr M6 28 1.0 | 140.0245 |
Contact Tip,CuCrZr M6 28 1.2 | 140.0382 |
Contact Tip Holder | 140.0001 |
Nozzle Spring | 003.0013 |
Swan Neck | 004.0012 |
Nut M10 | 501.0082 |
Plastic Nut | 400.0044 |
Switch Connector Coller | 175.A022 |
Central Connector KZ2 | 501.0003 |
