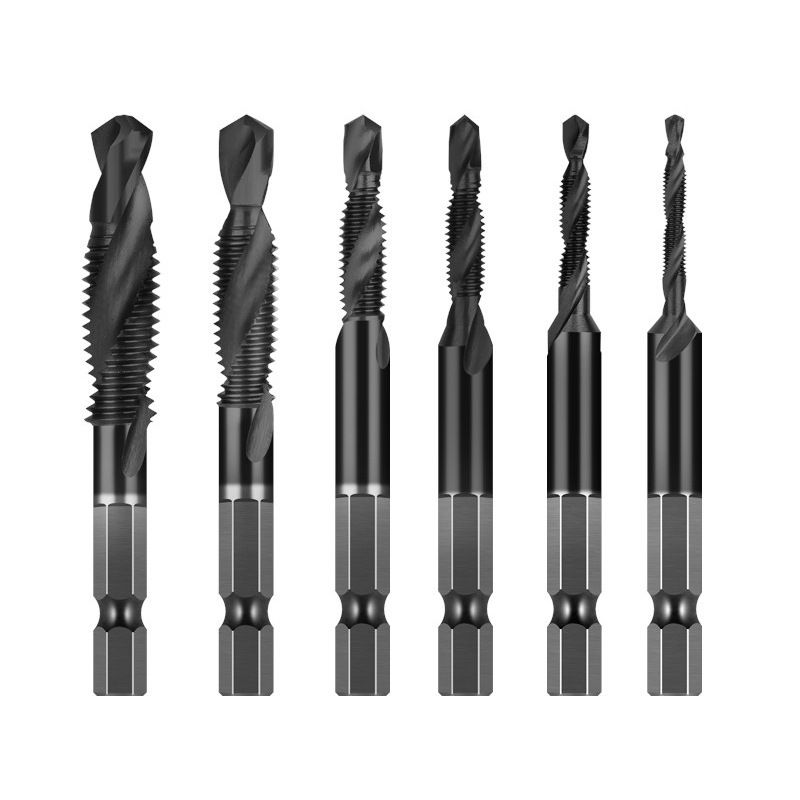

At the front end of the tap (thread tap) is a drill bit, which is a high-efficiency tap (thread tap) for continuous drilling and tapping to complete processing at one time. High-speed steel 4341 material, suitable for plastic, PVC, wood and other materials. High-speed steel 6542 material, suitable for soft metals such as aluminum alloy, tin alloy, various copper parts, and cast iron. High-speed steel M35 material, used for hard materials such as steel plate, cast iron, 204, thin 304 stainless steel– Ideal for auto and machine repair where UNC combined inch metric wires are specified. – They are used just like a lathe. Faster, and generally more accurate because human error is eliminated. – Can be attached to a bench drill. – Suitable for use in manual drill

Brand	Xinfa	Coating	TiCN; Ti; Cobalt
Product Name	Drill Tap Bits	Thread Type	Coarse Thread
Material	HSS 6542/4341/4241	Use	Hand Drill

1.Sharp and no burrs The cutting edge adopts straight groove design, which reduces the wear during cutting, and the cutter head is sharper and more durable. 2.Whole grinding The whole is ground after heat treatment, and the blade surface is smooth, the chip removal resistance is small, and the hardness is high. 3.Excellent selection of materials Using excellent cobalt-containing raw materials, it has the advantages of high toughness, high hardness and wear resistance 4.Wide range of applications Cobalt-containing straight flute taps can be used for drilling of different materials, with a complete range of products 5.Spiral groove structure Forged from high-speed steel material, the surface is plated with titanium, and the service life is longe

Specification	Total length(mm)	Length of Drill(mm)	Length of flute(mm)	Net Weight(g/pc)
M3	65	7.5	13.5	12.5
M4	65	8.5	14.5	12.6
M5	69	9.5	15.5	12.8
M6	69	10	17.5	13.6
M8	72	14.5	20	15.2
M10	72	14.5	22	17.8
