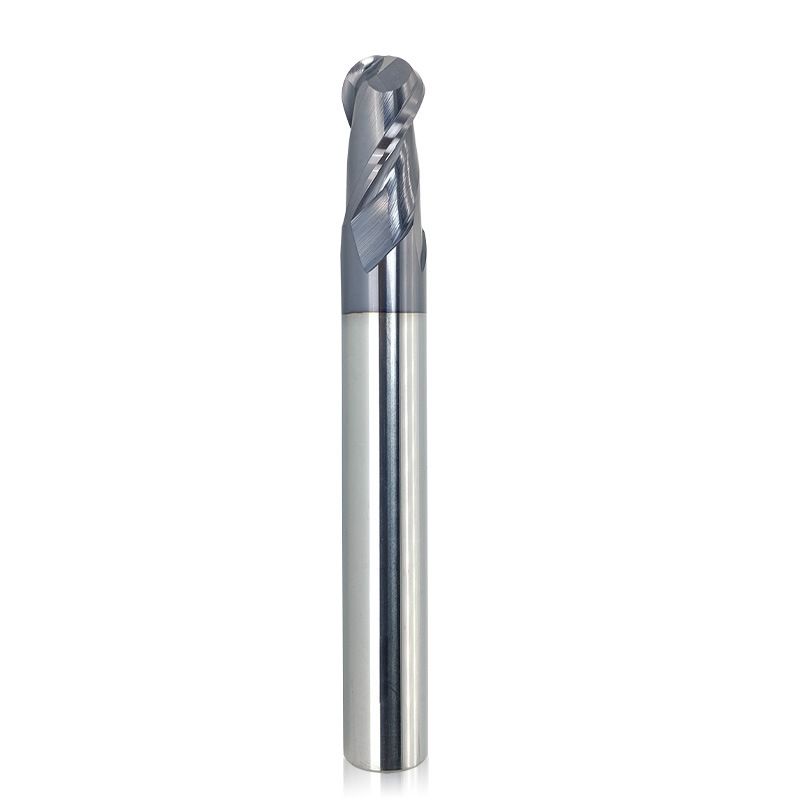

Produced by foreign first-class precision machine, the ball nose end mill can grind the unique spiral edge angle, the large core diameter design improves the rigidity and shock resistance. And the large chip removal space is not easy to accumulate chip, break the knife. It is sharp and wear-resistant, the chip is smoothly cut, and the milling efficiency is improved.

SIZE	FLUTE DIAMETER D1(MM)	FLUTE LENGTH L1(MM)	SHANK DIAMETER D(MM)	TOTAL LENGTH L(MM)
1.5*4*50	1.5	3	4	50
2.0*6*50	2	4	4	50
2.5*8*50	2.5	5	4	50
3.0*8*50 S4	3	6	4	50
3.0*8*50	3	6	3	50
3.5*10*50	3.5	7	4	50
4*10*50	4	8	4	50
4*15*75	4	8	4	75
4*20*100	4	8	4	100
5*13*50	5	10	5	50
5*13*50 S6	5	10	6	50
6*15*50	6	12	6	50
6*20*75	6	12	6	75
6*30*100	6	12	6	100
8*20*60	8	16	8	60
8*25*75	8	16	8	75
8*35*100	8	16	8	100
10*25*75	10	20	10	75
10*40*100	10	20	10	100
12*30*75	12	24	12	75
12*45*100	12	24	12	100
14*35*80	14	28	14	80
14*45*100	14	28	14	100
16*45*100	16	32	16	100
18*45*100	18	36	18	100
20*45*100	20	40	20	100
6*30*150	6	12	6	150
8*50*150	8	16	8	150
10*55*150	10	20	10	150
12*60*150	12	24	12	150
14*65*150	14	28	14	150
16*70*150	16	32	16	150
18*70*150	18	36	18	150
20*70*150	20	10	20	150
φ7*20φ8*60	7	14	7	60
φ9*20*10*75	9	18	9	75
φ11*25*12*75	11	22	11	75
φ13*40*φ14*100	13	26	13	100
φ15*40*φ16*100	15	30	15	100

1.Tool handle chamfering is easy to operate. Easy to use, has good compatibility, enhances the anti-vibration and cutting speed of the milling cutter, and the clamping is tighter without slipping. 2.High rigidity, strong wear resistance.
