Products Details

Plasma torches with high frequency. The principle novelty of this torch is the integration of all the models- from 80 to 150 ampere-in a single handle. -Reparability: For the damage of a single part, it is possible now to replace it without having to buy the complete torch head. -Protection: The torch head is integrated in the plastic handle, so it is better protected against accidental knocks that could cause damage to the torch. -Standard: The trigger used in the handle is the same one widely used in MIG torches; The retaining screws and the ball and socket joints are the same as in the ergotig series. - Light weight - Ergonomics: This handle already trialed with the first ergocut models, has had its dimensions revised so as to be able to hold larger torch bodies. - Safety: To reduce the amount of heat striking the hand of the operator and to protect it better against cutting splash, the grip has been moved back a few centimeters, obtaining a considerable reduction of temperature in the area of the trigger.dasdas1

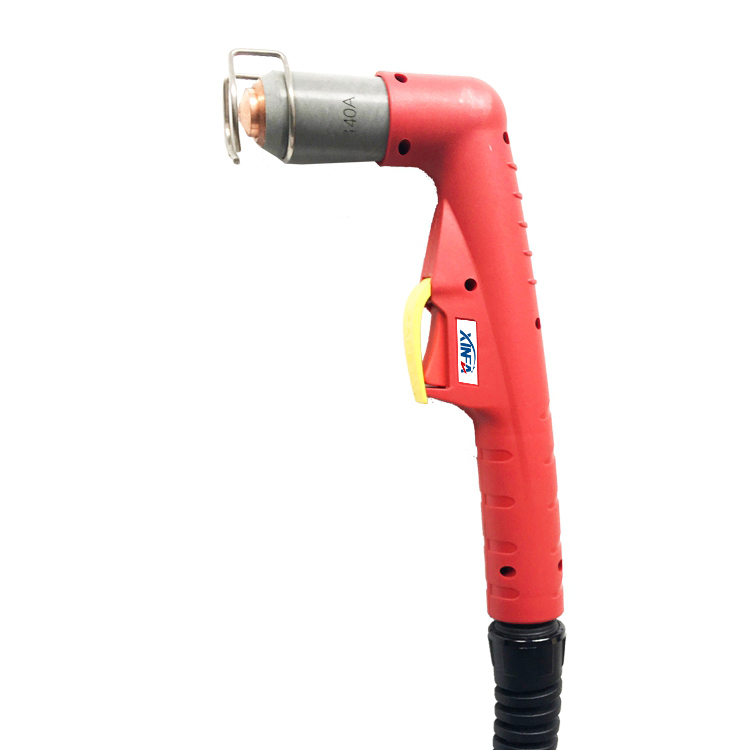

Product Name Trafimet Type A141 Plasma cutting torch
Model Number. PA1502 - PA1506 - PA1500 - PA1509 -1504
Technical Date:
Air Pressure 4.5-5.5 bar
Duty Cycle 60%-140A
Length 6meters - 8meters - 12meters
Connector Nut / Central type compatible to trafimet
ITEMS REF. NUMBER
Stand off guide CV0008
Stand off guide CV0009
Insulate Ring / Spring Spacer CV0011
Two Point Spacer / Stand off Guide CV0012
Four Point Spacer / Stand off Guide CV0014
Stand off Guide Wheel CV0021
Spacer Contact Cutting CV0023
CV0039
Insulate Spacer FH0297
Shield Cap PC0101
PC0102
Shield Cap Nozzle Contact PC0103
PC0131
Tip PD0101-08
PD0101-11
PD0101-14
PD0101-17
PD0101-19
PD0101-30
Elongated Tip (Contact-Type) PD0111-12
Elongated Tip PD0111-14
PD0111-17
PD0111-19
Diffuser / Swirl Ring PE0101
Diffuser / Swirl Ring PE0103
Electrode PR0101
Elongated Electrode PR0116
Front Insulator PE4001
Diversion Pipe FH0563
Torch Head O-Ring EA0131
Torch Head PF0155
Kit Trigger TP0400
Handle Kit TP0402
Complete Torch Head
